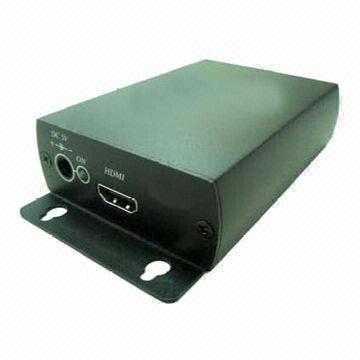

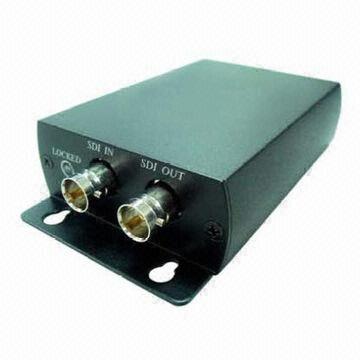

HD-SDI TO HDMI CONVERTER

Overview

SDI01 converts from 3G-SDI, HD-SDI, and SD-SDI to HDMI, enabling users to use cost-effective HDMI display to SDI based equipment. It also provides 2-channel stereo audio. The application could be used for HD CCTV, HD-SDI camera, and broadcast video monitoring.

Features

• To send a 3G/HD/SDI signal converted to HDMI.
• Support SDI (SMTP 259M), HD-SDI (SMTP 292M), 3G-SDI (SMTP 424M).
• Support video signal NTSC, PAL, 720p, 1080i, 1080p.
• Support 2 Channel stereo audio.
• Built-in Equalizer to increase the working distance and signal reliability.
• SDI Loop Out with Retiming function to have the best output quality.
