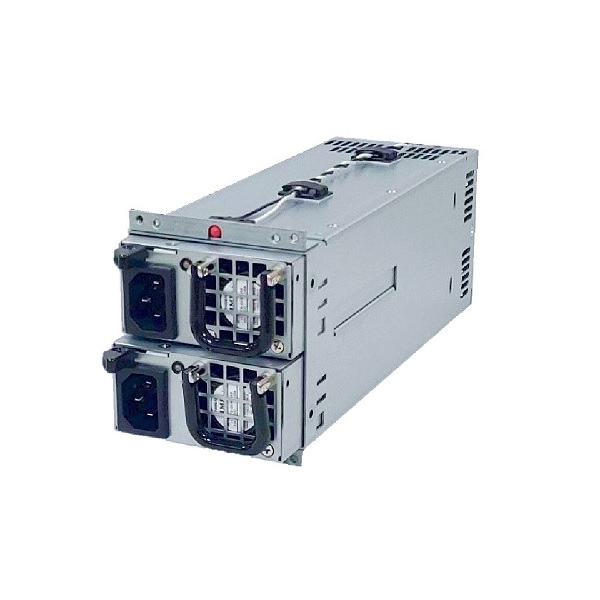

RB2 series Redundant Power Supply
(Model: RB2 Series)
Models
- RB2-G400VP for 400W
- RB2-G460VP for 460W
- RB2-G500VP for 500W
- RB2-G550VP for 550W
Input Characteristic
- Input connector: The input connector shall be an IEC60320 C14 inlet, rated for 15A/250Vac
- Input Voltage and Frequency:
| Minimum | Nominal | Maximum | Measure |
|---|---|---|---|
| 90 | 100 ~ 240 | 264 | Vac |
| 47 | 50 ~ 60 | 63 | Hz |
- Input Current and Inrush Current
| Input Voltage | Max. Input Current | Inrush Current |
|---|---|---|
| 115 Vac | 8.5 A | 30 A |
| 230 Vac | 4 A | 60 A |
- Power Factor: The minimum power factor shall be 0.9 with 50% load and input 230Vac/50Hz
- DC Output Characteristic
| Output Voltage | Min. Current | Max. Current | Regulation | Ripple & Noise |
|---|---|---|---|---|
| +3.3 V | 1 A | 24A/24A/25A/25A | +/-5% | 50mV |
| +5 V | 1 A | 24A/24A/25A/25A | +/-5% | 50mV |
| +12 V | 1 A | 33A/38A/41A/45A | +/-5% | 120mV |
| -12 V | 0 A | 0.8A | +/-5% | 120mV |
| +5 VSB | 0.1 A | 2.5A/2.5A/3.5A/3.5A | +/-5% | 50mV |
- Efficiency: The power efficiency shall meet 80Plus GOLD
- Hold-up Time: The output voltages stay in regulation at least 18ms with 80% load after loss of AC input
- Rise Time: The output voltages rise from 10% to 90% with full load, and shall be in 5ms to 70ms
