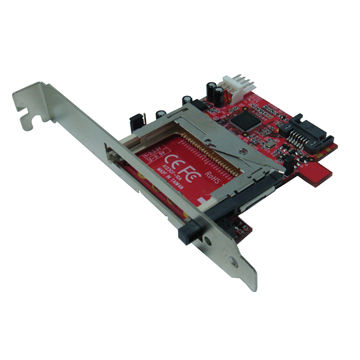

SATA – CF Bridge Board (Front Use & Rear Use)

‹

›

Bootable & Hot-Plug Compact Flash on Serial ATA port. Connect this bridge board to the Serial ATA port and make your PC system support a bootable CompactFlash device. This is a convenient interface that allows a CompactFlash device to be used in any system that has a SATA port.

Features

• Compliant with Serial ATA 2.6 specifications and High transfer rate of 1.5 and 3Gbps
• Suit for any computer case, mini computer, embedded system, IPC, and Rackmount cabinet
• Support CompactFlashTM cards (Type I & Type II) or an IBM Microdrive™
• CF card can be the primary bootable device containing the OS and software
• On board activity LED for CF access
• CF Push the bottom ejector on board
• CF and PCBA Powered by 4Pin floppy power connector
• CF 3.3V / 5V Voltage selection
• ATA/ATAPI PIO mode data transfer
• ATA/ATAPI UDMA data transfer rate of 150, 133, 100, 66, 44, 33, 25, 16.7 MB/s
• ATA/ATAPI-7Streamingfeatureset
• ATA/ATAPI 48-bit address feature set
• SATA hot-plug
• 100% OS-transparent hardware bridge adapter to support Windows, MAC and Linux, no driver required
• Low Profile PCIe Form Factor
• Regular-size PCIe bracket on board, and an additional Low Profile bracket included
• Fully RoHS compliant
