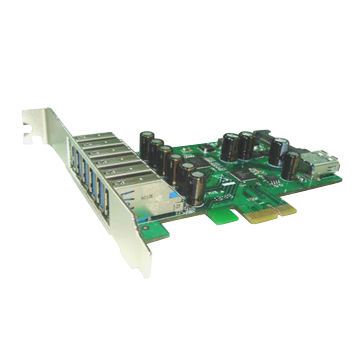

USB 3.0 6 External + 1 Internal Low Profile PCIe Host Adapter

‹

›

External 6 Ports and Internal 1 Port USB 3.0 SuperSpeed 5Gbps in Low Profile PCIe Host Adapter to support all kinds of USB 3.0, USB 2.0, USB 1.1 Devices!

Features

• 6 External and 1 Internal USB 3.0 5Gbps Type-A Ports
• Supports PCIe 1.0 and PCIe 2.0 motherboards
• PCIe Gen2 x1 Lane Host Adapter
• Compliant with Universal Serial Bus 3.0 Specification Revision 1.0
• Compliant with Intel eXtensible Host Controller Interface (xHCI) Specification 1.0
• All USB ports can handle SuperSpeed (5 Gbps), HighSpeed (480 Mbps), FullSpeed (12 Mbps), and LowSpeed (1.5 Mbps) transactions
• Support USB3.0, USB2.0 and USB1.1 devices
• Compliant with PCI Express Specification 2.0
• Low Profile PCIe Form Factor
• Regular-size PCIe bracket on board, and a Low Profile PCIe Bracket included
• Adapter board powered by PCIe slot
• Provides 5V/1A USB bus power to USB devices from the Motherboard PCIe slot directly, or sufficient 5V from the PC power supply if the SATA 15Pin Power connector is connected
• Supports 64-bit and 32-bit Windows 7, Vista, XP, and 64bit 2008 R2
• Supported natively in Windows 8, Linux kernel 2.6.31 or later
• Fully RoHS compliant
