- All Modularized Design
- 17" TFT LCD Module (Support Multi-Sync)
- 8,16 PORT KVM switch Module (USB + PS/2)
- 8 Language Keyboard Module
- Easy Change Modular. (Tooling loss Design.)
- One person Quick and easy installation.
- Sun Micro System supported.
- Can Use for 520mm~980mm Cabinet Rack
- Heavy-duty steel electroplated for chassis

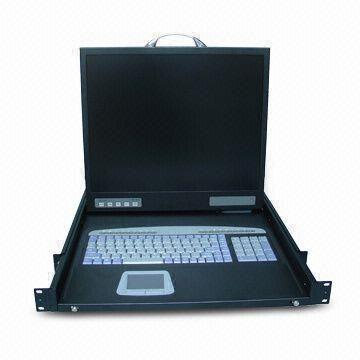

- Only 1U 4 IN 1 Drawer(LCD, KB, MOUSE, KVM Switch)
- Keyboard Modules
- 105 key Keyboard, compatible to IBM PC/AT, PS/2 keyboard, supports Windows function keys & Sun Micro System Function Key (Germany, English, French, Italian, Spanish, Japanese, Chinese, UK....optional)
- PS/2 Touchpad (Microsoft mouse compatible with PS/2 mouse interface) Full Wheel Mouse emulation left, middle and right button emulation.
- TFT LCD Modules
- 17" TFT LCD Panel Module
- Built-in 7 languages OSD controls
- Backlight lifetime: 50,000 hrs.
- Sun Micro System Multi-Sync Supported.
- Sun Micro System 1152x900 Resolution Supported.
- Automatic flat panel shut-off when monitor is in the closed position, or no signal input.
- KVM switch Modules (USB+PS2) 8/16 Port KVM switch (108D/116D)
- One USB-PS/2 console controls 8 /16 computers
- Cascade up to 2 levels - control up to 128/256 computers
- Dual Interface - supports computers with PS/2 or USB keyboards and mice
- Multiplatform support - Windows 2000/XP/Vista/Windows 7, Linux, Mac, and Sun
- Supports multimedia USB keyboards for PC, Mac and Sun
- Auto PS/2 and USB interface detection
- USB or PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
- Superior video quality - up to 2048 x 1536; DDC2B
- Computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menu
- Three level password security - only authorized users view and control computers; up to four users and an administrator with a separate profile for each, password for each port.
- Auto Scan feature for monitoring user-selected computers
- Hot pluggable - add or remove computers without having to power down the switch
- Buzzer on/off via hotkey and OSD
- Firmware upgradeable
- No software installation required
- Designed for desktop or rack mount (19" system rack, 1U)
|
| |
|
|
Product Specification
