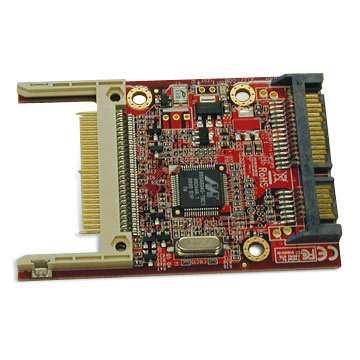

Plug CF memory directly and acts as a 2.5 inch slim line Low power SATA Hard Drive
- 22 pin SATA (Signals and Power) male connector on board
- Support CompactFlashTM cards (Type I & II ) or a IBM MicrodriveTM
- Transparent to the operating system and does not require any drivers
- The CF card can be the primary bootable device containing the OS and application
- Support any size of CF memory card up to 2TB
- Support DMA and UDMA mode
- Fully RoHS compliant
- Interface: 22 pin SATA (Signals and Power) male connector
- Supported media: Type I/II CF
- Maximum Read / Write Speed: Depends on the CF media
- OS Support: DOS, Windows 3.1, NT, 98SE, Me, 2000, XP, Vista, Mac OS 8.6 or higher, Linux
- Dimensions ( W x D x H): 51 x 91 x 6 mm with CF card attached
- Power: +5V from SATA power
- Power Consumption: 0.6W
- PCB: 4 Layers / FR-4 94V0 / 0.5 oz / 1.6mm
- EMC Compliance: EN55022/1998, EN55024/1998 (European Community), FCC Part 15 Class B (DoC) (US)
- Temperature: Operating 0° to +70°, Storage -25° to +90°
- Humidity: Operating 20% to 80%, Non Operating 15% to 90 %
- Chipset: Marvell
- Warranty: One Year
|
| |
|
|
Product Specification
