Connect This floppy bay to standard IDE
40Pin or 44Pin cable and make your PC
system to support CompactFlash device.

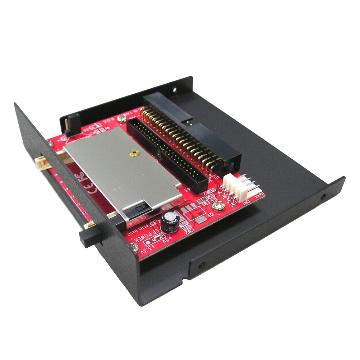

This is a convenient 3.5" drive frame that allows
CompactFlash modules to be used in any
computer system that has a standard IDE 40 pin
or 44 pin port.
- Supports 40 pin & 44 pin IDE standard Port both
- 3.5 "drive frame for 3.5" bay
- For any computer case , mini computer, embedded system, iPC and Rackmount case
- Support CompactFlashTM cards (Type I & II) or a IBM MicrodriveTM
- Transparent to the operating system and does not require any drivers
- The CF card can be the primary bootable device containing the OS and application
- Supports jumper for master and slave setting
- Push bottom ejector on board
- Powered from 4 pin floppy connector or 44 pin IDE Port
|
| |
|
|
Product Specification
